Hi-Cloud, a leader of 3D laser scanning technology.
 |
| Place of Origin: | China |
| Brand Name: | Hi-Cloud |
| Certification: | ISO, others upon the requests |
| Model Number: | Long120 Multi Rotor UAV |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Transport Case |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 sets/month |
| Dimension: | 60*60*50 Cm | Takeoff Weight: | 17kg |
|---|---|---|---|
| Maximum Load: | 8kg | Maximum Horizontal Flight Speed: | 50km/h |
| Max. Wind Resistance: | ≤Level 6 | Rain Resistance: | Light Rain |
| Highlight: | 8kg Multi Rotor UAV,120min Multi Rotor UAV,120min six axis drone |
||
120min maximum load 8kg multi rotor UAV Long120 with maximum speed 50km/h level 5 wind resistance light rain resistance

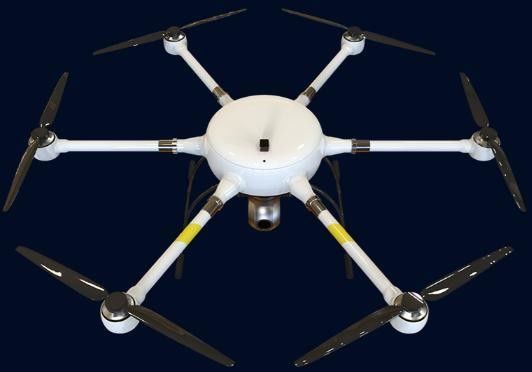

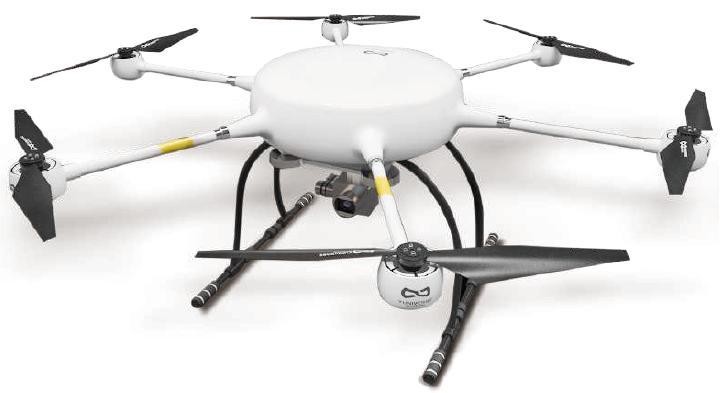

Long120 multi rotor UAV is a new integrated flight platform specially built for the map field. Long120 is a six axis multi rotor UAV with a wheelbase of 1.6m and a load of 8kg. It can run for 120 minutes with pure electric power; it has industrial level flight control, which can effectively deal with various harsh environments. By carrying different equipment, Long120 can be used in power line inspection, aerial survey, natural disaster survey, agriculture and forestry, land and resources, hydrological monitoring and other fields.
Main parameters of Long120
| Unfold wheelbase | 170cm |
| Dimension |
60*60*50 |
| Takeoff weight | 17kg |
| Maximum load | 8kg |
| Mission payload | 0-8kg |
| Maximum horizontal flight speed | 50km/h |
| Maximum ascent speed | 5m/s |
| Maximum descent speed | 3m/s |
| Max takeoff sea level |
≤2500m(standard package) ≤4500m(plateau package) |
| Max. wind resistance | ≤Level 5 |
| Rain resistance | Light rain |
| Operation temperature | -10℃——40℃ |
| Duration |
120min w/o payload |
|
65min with 6kg payload |
|
| Expandable payload | Photoelectric pod, SLR/oblique camera, infrared camera, LiDAR, multispectral / hyperspectral imager, detector, high altitude lighting |
|
Expandable module |
RTK/PKK,etc |
| Duration test environment |
Altitude below 500m, temperature 15-30 ℃ (w/o load)
|
| Inspection distance environment | No interference and shielding |
Taking UAV as the flight platform, multiple types of data can be obtained by carrying orthophoto camera, multispectral camera, oblique camera, thermal infrared camera and LiDAR. It is widely used in disaster emergency and treatment, land supervision and resource development, especially in basic mapping, land resource investigation and monitoring, land use dynamic monitoring, emergency relief mapping, the investigation of forestry resources and forest fire prevention.
1. Application of visible light remote sensing by UAV in forest resource parameter extraction
2. Application of UAV equipped with multispectral sensors in forestry resources investigation and water quality monitoring
3. Application of UAV oblique Photogrammetry in large-scale topographic mapping
4. Application of UAV equipped with thermal infrared sensor in forest fire prevention
5. Application of UAV airborne LiDAR in topographic mapping
6. Application of UAV and airborne LiDAR in forestry investigation
