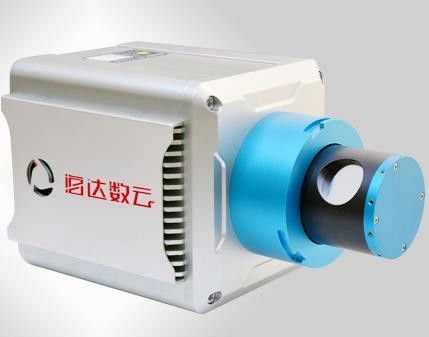

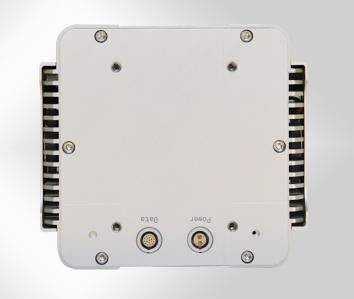

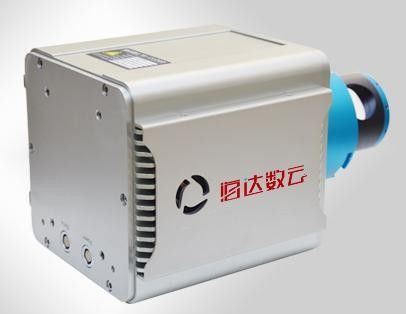

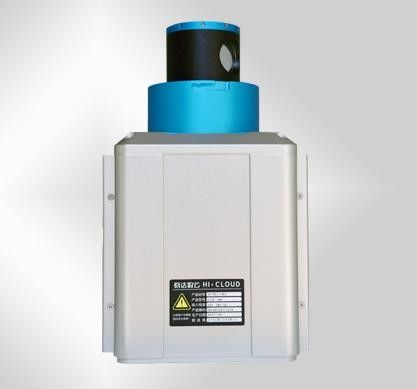

360 Degree ILSP 2D Laser Profiler 600m/300m/150m Range Laser Beam Profiler

360 Degree ILSP 2D Laser Profiler 600m/300m/150m Range Laser Beam Profiler

  • 360 Degree ILSP 2D Laser Profiler 600m/300m/150m Range Laser Beam Profiler
  • 360 Degree ILSP 2D Laser Profiler 600m/300m/150m Range Laser Beam Profiler
  • 360 Degree ILSP 2D Laser Profiler 600m/300m/150m Range Laser Beam Profiler
  • 360 Degree ILSP 2D Laser Profiler 600m/300m/150m Range Laser Beam Profiler
360 Degree ILSP 2D Laser Profiler 600m/300m/150m Range Laser Beam Profiler
Product Details:
Place of Origin: China
Brand Name: Hi-Cloud
Certification: ISO, others upon the requests
Model Number: iLSP-650/300/150 2D Laser Profiler
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transport Case
Delivery Time: 10 working days
Payment Terms: T/T
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Range: 600m/300m/150m Range Accuracy: 5mm@100m
Angular Resolution: 0.001° FoV: 360°
PRR: Max.1M Hz Laser Class: Class I(eye Safe)
High Light:

360 degree 2D Laser Profiler

,

300m range 2D Laser Profiler

,

150m range Laser Beam Profiler

5mm@100m accuracy max.1M Hz PRR 360° FoV 2D Laser Profiler iLSP series profiler with 600m/300m/150m measurement range



iLsp-600/300/150 series LiDAR profile scanners use self-developed laser ranging and rotary scanning modules. With high laser frequency and high scanning accuracy, they can be widely used to quickly obtain high-precision and high-density laser point cloud data. The profile scanner integrates the panoramic mobile measurement system, which can easily complete the database construction of vector map data, 3D geographic data production and street view data production. They are widely used in road survey, topographic mapping, urban component survey, transportation assets survey, garden survey, 3D digital city and other fields.



Main parameters of 2D Laser Profiler iLSP-600/300/150



Item iLSP600 iLSP300 iLSP150
Laser Type Pulse, 1545nm
Laser Class Class I(eye safe)
PRR Max.1MHz
Min. Measurement Range 1.5m
Max. Measurement Range 600m@100kHz,90%refl 300m@100kHz,90%refl 150m@100kHz,90%refl
Range Accuracy 5mm@100m
Max. Scan Speed Max. 200Hz
Angular Resolution 0.001°
Scan FoV 360°
Data Transmission Interface Giga LAN
External Time Synchronization PPS
Operation Voltage 24V DC
System Consumption <100w
Dimension 250mm×130mm×147mm
Weight 3.5kg
Operation Temperature -20℃~+55℃
Storage Temperature -40℃~+65℃



Main features of 2D Laser Profiler iLSP-600/300/150



1. High frequency

The maximum measurement frequency of point cloud of iLSP-600/300/150 series 2D laser profiler is 1 million points/s, the target scanning is more detailed, and the measurement results are more accurate and comprehensive.



2. Long range

The maximum range of iLSP-600 2D laser profiler reaches 600m when ρ=90%,. Long range brings further target detection capability and more rich data presentation, which greatly improves work efficiency.



3. Full autonomy

iLSP-600/300/150 series 2D laser profiler is independently developed by Hi-Cloud with completely independent intellectual property rights. The original factory service, upgrade and after-sales are guaranteed.



4. Modularization

iLSP-600/300/150 series laser profiler adopt modular integrated design ,which is convenient for customers to integrate various LiDAR measurement systems with IMU, GPS and other POS modules and panoramic camera modules. The integration method is simple and convenient, and can quickly form productivity tools.



5. Easy to develop

Hi-Cloud is specially equipped a complete self-developed SDK for iLSP-600/300/150 series 2D laser profiler, and provides rich integrated interfaces. Customers can quickly start development based on the SDK development package to reduce the difficulty of development.



Integrated product of 2D laser profiler iLSP-600/300/150



iLSP-600/300/150 series 2D laser profiler can be integrated in various mobile measurement systems, including HiScan-C vehicle mounted 3D laser mobile measurement system and ARS series airborne 3D laser mobile measurement system.



1. HiScan-C vehicle mounted 3D mobile LiDAR system

iLSP-600/300/150 series 2D laser profiler can be integrated with modules such as satellite positioning module (GPS), inertial navigation device, mileage encoder, 360 degree panoramic camera, assembly control module and high-performance calculator to form HiScan-c vehicle mounted 3D laser mobile measurement system. Placing the system on the vehicle carrier can easily complete the production and processing of vector map data, street view data and 3D geographic data during the movement of the carrier. It is widely used in topographic survey, urban municipal component survey, urban garden survey, traffic survey and design, traffic information survey, street view map service, digital 3D urban construction and other tasks.



2. ARS series 3D airborne LiDAR system

iLSP-600/300/150 series 2D laser profiler can be integrated with ARS series 3D airborne LiDAR system, which can efficiently and quickly obtain 3D laser point cloud and image data in various scenarios, so as to meet the needs of customers for 3D data acquisition in complex scenes. The overall design of the system is simple and flexible, the product post-processing is simple and fast. Equipped with industry application software, digital products such as DSM, DEM, DOM and DLG can be quickly generated. It is widely used in emergency mapping, topographic mapping, power line inspection, highway survey, coastal island reef survey, excavation and filling volume calculation, archaeological investigation and mapping, etc.
