HiScan-R Lightweight Mobile LiDAR Equipment Mapping System Adjustable

Name: HiScan-R Lightweight Mobile LiDAR Equipment Mapping System Adjustable
Brand: Hi-Cloud
SKU: HiScan-R Lightweight Mobile LiDAR System
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (170 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Hi-Cloud
Certification:	ISO, others upon the requests
Model Number:	HiScan-R Lightweight Mobile LiDAR System

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Transport Case
Delivery Time:	20 working days
Payment Terms:	T/T
Supply Ability:	5 sets/month

Contact Now

Detailed Product Description

Number Of Scanners:	1	Range Measurement:	420m@80% Reflectivity
Laser Frequency:	Max. 1,000,000points/s	Range Accuracy:	5mm@30m
Angular Resolution:	0.001°	Scan Speed:	10-250 Scans/s
High Light:	Lightweight Mobile LiDAR Equipment , Adjustable Mobile LiDAR Equipment , LiDAR mobile mapping system

420m@80% range 5mm@30m accuracy HiScan-R Lightweight Mobile LiDAR System with 0.001° angular resolution

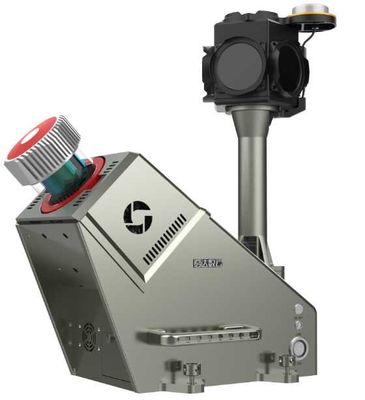

HiScan-R lightweight mobile LiDAR system is mobile surveying and mapping equipment based on Riegl LiDAR and launched by Wuhan Hi-Cloud Technology Co., Ltd. It integrates modules like 2D laser scanning equipment (LS), satellite positioning module (GNSS), inertial navigation unit (IMU), wheel encoders, panoramic cameras, assembly control module and high-performance board computer, etc.. It can collect point cloud data and panoramic images in real-time. It is convenient to install in various carriers such as cars, beach buggies, ships or other mobile carriers. The production and processing of vector map data, street view data and geographic data can be easily completed during the movement of the carriers. It is widely used in topographic survey, urban municipal component survey, urban garden survey, traffic survey and design, traffic information survey, street view map service, digital city, waterway and island survey and other fields.

Specification

HiScan-R Lightweight Mobile LiDAR System

Items	Parameters
Number of Scanners	1
Range Measurement	420m@80% reflectivity
Laser Frequency	Max. 1,000,000points/s
Range Accuracy	5mm@30m
Angular Resolution	0.001°
Panoramic Camera	30M pixels
Accuracy	5cm@100m
Scan Speed	10-250 scans/s
Positioning Accuracy (no lock loss, post-processing)	horizontal 0.01m
Positioning Accuracy (no lock loss, post-processing)	vertical 0.02m
Orientation Accuracy (no lock loss, post-processing)	heading 0.004°
Orientation Accuracy (no lock loss, post-processing)	pitch/roll 0.003°

Features

Integration: highly integrated, light vehicle platform suitable for different models.
Retractable: retractable roof rack, effectively solving the problem of rear shielding of different models.
High precision: high point cloud density, high point recognition rate, high measurement accuracy.
Calibration-free: calibration is completed before delivery.
High intelligence: seamless integration of point cloud and panorama.
Adjustable: support left and right angle adjustment of 30°/60°, obtain more comprehensive data.
Lightweight: small size and multiple carriers, greatly reducing the blind area of operation.
Easy to store: pluggable data storage design.

Application Fields

It can be widely used in street view maps, cadastral surveys, urban municipal component surveys, traffic survey informatization, urban landscaping surveys, digital/smart 3D city, digital waterways, island and reef survey and other fields.

i. Internet street view map
HiScan-R Lightweight Mobile LiDAR Equipment Mapping System Adjustable 0

ii. Basic topographic mapping

iii. Urban municipal component survey

iv. Urban landscaping survey

v. Highway survey and intelligent transportation

vi. Digital 3D city
