Hi-Cloud, a leader of 3D laser scanning technology.
 |
| Place of Origin: | China |
| Brand Name: | Hi-Cloud |
| Certification: | ISO, others upon the requests |
| Model Number: | HS300X 3D Industrial Laser Scanner |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Transport Case |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
| Max. Measurement Range: | 300m | Min. Measurement Range: | 1.5m |
|---|---|---|---|
| Range Accuracy: | 5mm@40m | PRR: | 500kHz |
| FoV(horizontal): | 360° | FoV(vertical): | 100°（-40°～+60°） |
| High Light: | 300m Industrial Laser Scanner,1545nm Industrial Laser Scanner,300m Terrestrial LiDAR Scanner |
||

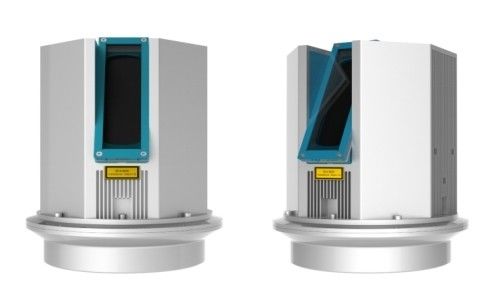

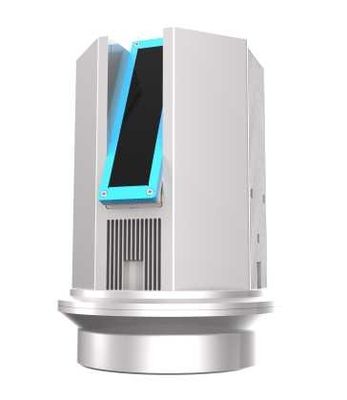

5mm@40m accuracy 300m range HS300X Industrial 3D Laser Scanner with FoV 360°*100° and laser class I
HS300X high-precision 3D industrial laser scanner is dustproof, waterproof and shockproof. It is equipped with industrial integrated secondary development package (equipment control SDK, point cloud processing SDK) and laser measurement algorithm package, which can realize remote automatic control, meet the needs of basic registration, coordinate conversion, volume calculation, etc. And it can also be customized according to the actual situation of the project, provides the industrial control whole process solution of laser measurement hardware and software + PLC, and provides regular calibration and other after-sales services. It is widely used in steel, metallurgy, port, wharf, mine, tunnel, electric power and other industries.
Application Industry: Steel, metallurgy, port, wharf, mine, tunnel, electric power, etc..
Application Direction: ship unloader automation, machine vision automation, shovel automation, coal inventory system, volume calculation, digital stockyard, etc...
Specification of HS300X 3D Industrial Laser Scanner
| Item | HS300X | |
| Ranging Mode | Pulse, Laser Wavelength: 1545nm | |
| Laser Class | ClassⅠ | |
|
Max. Measurement Range |
300m | |
| Min. Measurement Range | 1.5m | |
| Range Accuracy | 5mm@40m | |
| PRR | 500kHz | |
| FoV | vertical | 100°(-40°～+60°) |
| horizontal | 360° | |
| Angular Resolution | vertical | 0.002° |
| horizontal | 0.002° | |
| Scan Speed | horizontal | Max. 30r/s |
| vertical | Max. 150lines/s | |
| Duo Axis Compensation | Range | +/- 5° |
| Resolution | 0.001° | |
| Data Transmission | Ethernet | |
| Communication Interface | Ethernet/1 x USB/GNSS, connecting external cameras and other sensors, such as GPS, odometer, etc | |
| Operation Temperature | -10℃～65℃ | |
| Storage Temperature | -20℃～65℃ | |
| Illumination Condition | Can be operated in strong sunlight or darkness | |
| Humidity | Non condensing | |
| Product | Waterproof and dustproof | |
Features of HS300X 3D Industrial Laser Scanner
1. High accuracy
2. High protection class
3. Remote control
4. Strong expansibility
5. Strong stability
6. Wide application
Application of HS300X 3D Industrial Laser Scanner
Application of Thickness Measurement of Converter Brasque
Application of Gravel and Coal Supervision System
Application of the Measurement of the Converter Target Balls
