Hi-Cloud, a leader of 3D laser scanning technology.
 |
| Place of Origin: | China |
| Brand Name: | Hi-Cloud |
| Certification: | ISO, others upon the requests |
| Model Number: | HD TLS360 Industrial Laser Scanner |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Transport Case 590*420*290mm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets/month |
| Weight: | Ca. 4kg | Min. Range: | 0.2m |
|---|---|---|---|
| Max. Range: | 150m | Range Accuracy: | 3cm@100m |
| Scan Point Rate: | 300,000pts/s | FoV: | 360°Horizontal * 280°Vertical |
| Highlight: | 4kg Industrial Laser Scanner,Lightweight Industrial Laser Scanner,4kg 3D Laser Measurement Device |
||
0.2m to 150m range 4kg lightweight Industrial Laser Scanner HD TLS360 with FoV 360°*280° and 300,000pts/s point rate

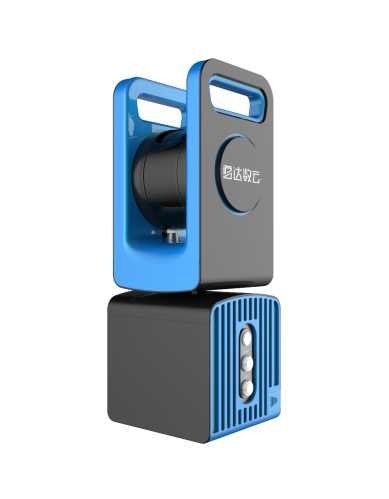

HD TLS360 Portable 3D Industrial Laser Scanner is a brand-new laser scanner developed and launched by Wuhan Hi-Cloud Technology Co.,Ltd. It is a small size, portable, easy to carry, fast scanning and cost-effective tool for different application scenarios.
Taking lightweight and humanization as the design conception, it integrates laser scanning, image acquisition and other technologies. It can complete 3D data scanning and acquisition with just one click using the APP installed in the smart phone. It is especially suitable for 3D laser application scenarios that require high precision, high efficiency and low cost. HD TLS360 Portable 3D Industrial Laser Scanner is widely used in the fields like building facade measurement, accident scene investigation, pile volume calculation, indoor measurements, decorations, plane and vertical section drawing, digital parks, University teaching and others.
Main features of HD TLS360 Portable 3D Industrial Laser Scanner
1. HD TLS360 uses streamlined aluminum alloy shell, blue and black classic color matching, cool appearance, super high appearance level.
2. Small size and light weight(ca.4kg), equipped with a carbon fiber tripod, can be easily carried, scanned and moved by an individual.
3. Can be expanded with panoramic camera to achieve laser point cloud + panoramic image multi-source data acquisition, to meet the needs of more application scenarios.
4. Remote wireless control by APP installed on smart phone, data acquisition and real-time scanning preview by one-click.
5. For some scanning environments that are inconvenient for operator to enter (such as between walls of dense buildings, boreholes, etc.), HD TLS360 can be used to conduct environmental scanning through tilting of the rod. For long-term mounted scanning environment (such as coal bunker, granary, etc.), flip design can be adopted, remote control for real-time data transmission and display.
Main parameters of HD TLS360 Portable 3D Industrial Laser Scanner
| Max. Range | 150m |
| Min. Range | 0.2m |
| Range Accuracy | 3cm@100m |
| Scan Point Rate | 300,000pts/s |
| FoV | Horizontal 360° |
|
Vertical 280° |
|
| Scan Speed | 4°/S～9°/S |
| Panoramic Resolution | 18M Pixels(External camera) |
| Duo Axis Compensation | ±5° |
| Data Storage | 256G(MSATA)+128G(TF) |
| Date Transmission | GigE/TF Card |
| Control Mode | Mobile terminal remote control |
| Battery Life | ＞4h |
| Dimension | 364×139.5×122mm |
| Weight | Ca. 4kg |
Application of HD TLS360 Portable 3D Industrial Laser Scanner
The key application scenarios are Building Facade, Accident Scene Investigation, Pile Volume Calculation, Interior Decoration, Plane/Elevation Section Drawing, Digital Park, University Teaching, etc.
Interior Decoration
Accident Scene Inspection
Pile Volume Calculation
Outdoor measurement
