Hi-Cloud, a leader of 3D laser scanning technology.
 |
| Place of Origin: | China |
| Brand Name: | Hi-Cloud |
| Certification: | ISO, others upon the requests |
| Model Number: | HS650i high frequency 3D laser scanner |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Transport Case |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets/month |
| Application: | Volume Calculation | Echo Mode: | Multi-echo Technology |
|---|---|---|---|
| Ranging Mode: | Pulse | Measurement Range: | 1.5m To 650m |
| Range Accuracy: | 5mm@40m | Angular Resolution: | 0.001° |
| Highlight: | 500kHz construction site scanner,IP64 construction site scanner,IP64 3d laser survey equipment |
||

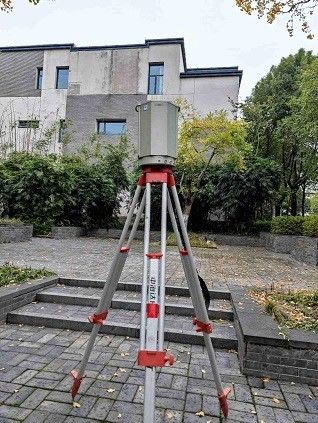

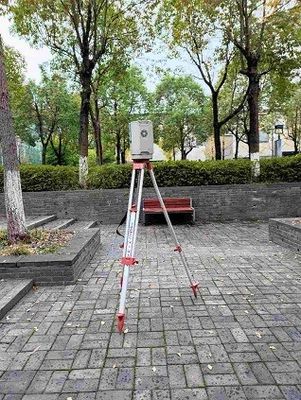

5mm@40m accuracy 1.5m to 650m range 500kHz IP64 protection HS650i high frequency 3D laser scanner for volume calculation
Earthwork is an important part of many engineering projects. In order to arrange engineering progress reasonably, calculate engineering cost accurately and improve engineering quality, it is usually necessary to calculate earthwork volume efficiently and accurately. The efficiency and precision of earthwork volume calculation will be directly affected by the speed and precision of data points collection on earthwork surface as well as the precision of data points fitting on target surface and the method of earthwork volume calculation.
As a new surveying and mapping technology, 3d laser scanning technology has the advantages of fast acquisition speed, high density, high precision, non-contact and wide measurement range. Hi-Cloud HS650i high precision 3D laser scanner can provide 3d point cloud data of scanned object surface, so it can be used to obtain high precision and high resolution digital terrain model. The earthwork measurement based on the 3d laser scanning technology provided by it can meet the accuracy requirements of earthwork volume calculation, and compared with the traditional method, simplifies the operation process and improves the operation efficiency, thus providing an efficient new technical means for earthwork volume calculation.
Specification:
|
Scanner Type |
HS650i | ||
| Ranging Mode | Pulse | ||
| Laser Class | Class 1 (eye safe) | ||
| Laser Beam Divergence | 0.35mrad | ||
| Echo Mode | Full waveform, multi-echo technology | ||
| Max. Range | 650m@90%,100kHz | ||
| Min.Range | 1.5m | ||
| Range Accuracy | 5mm@40m | ||
| Laser Pulse Repetition Rate PRR |
Max. 500kHz |
||
| Angular Measurement Resolution | 0.001° | ||
| Scan FoV | vertical | 100°(-40°～+60°) | |
| horizontal | 360° | ||
| Scan Speed | vertical | 3-150scans/s | |
| horizontal | max.36°/s | ||
| Dual-axis tilt sensor | Range | ±5° | |
| Resolution | 0.001° | ||
| Data Storage | 240GB(SSD) | ||
| Data Transmission | GigE/USB2.0 | ||
| Control Mode | Support mobile terminal APP and remote control | ||
| Operation Temperature | -20℃～+60℃ | ||
| Storage Temperature | -40℃～+85℃ | ||
| Humidity | non condensing | ||
| Protection Class | IP64 | ||
| Main Dimensions |
φ188mm×318mm |
||
| Weight | ca.10.5Kg | ||
