| Place of Origin: | China |
| Brand Name: | Hi-Cloud |
| Certification: | ISO, others upon the requests |
| Model Number: | JDX-2Dr Natural Gamma & Electrical Resistivity Probe |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Transport Case |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/month |
| Electrode Array: | N 0.6 M2 1.3 M1 0.3 A | Natural Gamma Sensor: | NaI Crystal |
|---|---|---|---|
| Apparent Resistivity: | 1～4000Ωm（customize10000Ωm） | Spontaneous Potential (SP): | ±1200mV |
| Natural Gamma: | 0～32768cps | Measurement Accuracy: | 2%（10～4000Ωm）or ±1Ωm |
| Highlight: | Electrical Resistivity And Gamma Probe,NaI Crystal Sensor Natural Gamma Probe,Electrical Resistivity And Gamma Ray Probe |
||

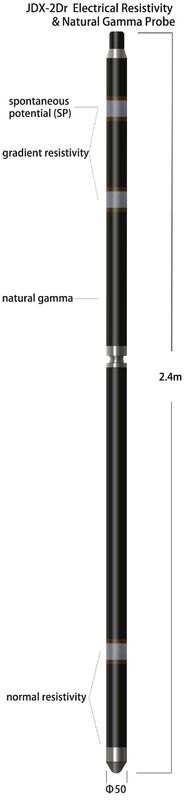

1～4000Ωm(customize10000Ωm)JDX-2Dr Natural Gamma & Electrical Resistivity Probe
Description
The Electrical Resistivity probe measures natural gamma,gradient resistivity,normal resistivity and spontaneous potential (SP) simultaneously. Users can log resistivity profiles with different depths of investigation and gain information about permeability, porosity, water quality and geological formation properties.
Operating Conditions:Uncased；Borehole Fluid:Water or Mud
Features & Benefits
1, The probe will digitize the measured information of the stratum and transmit it to the surface to avoid the effect of the cable on the measurement data.
2, Constant power, adaptive measurement, no manual operation.
Applications
Facies changes；Quantitative geological formation properties
Identification of hydrostratigraphic units
Aquifer thickness；Water quality
Identification of hydrocarbon intervals
Detection of ore body zones；Bed boundary analysis
Parameter
1. Instrument power supply:DC200V±20%,Electricity≤40mA
2. Electrode array: N 0.6 M2 1.3 M1 0.3 A
3. Natural gamma sensor:NaI Crystal
4. Measuring range:
Apparent resistivity:1～4000Ωm(customize10000Ωm)
Spontaneous potential (SP):±1200mV
Natural gamma:0～32768cps
5. Measurement accuracy:2%(10～4000Ωm)or ±1Ωm
6. Environmental: Temperature≦80℃；Pressure≤20MPa
