Hi-Cloud, a leader of 3D laser scanning technology.
 |
| Place of Origin: | China |
| Brand Name: | Hi-Cloud |
| Certification: | ISO, others upon the requests |
| Model Number: | JJH-2 Electronic Polarization |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Transport Case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/month |
| Electrode Array: | AM 16”;AM 64” | A、B Supply Current: | 500mA |
|---|---|---|---|
| Resistivity: | 1～4000Ωm（customize10000Ωm） | Spontaneous Potential (SP): | ±1200mV |
| Polarization: | 1~100% | Measurement Accuracy: | 2%（10～4000Ωm）or ±1Ωm |
| Highlight: | Disseminated Pyrite Electronic Polarization Probe,500mA Electronic Polarization Probe,100% Electronic Polarization Logging System |
||

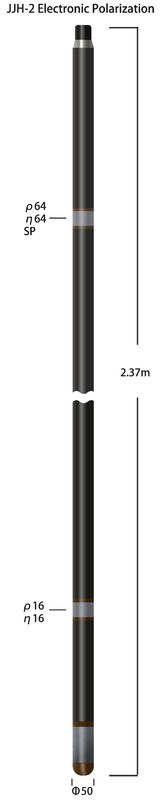

JJH-2 Resistivity 1～4000Ωm Accuracy 2% ±1Ωm Polarization 1~100% Electronic Polarization
Description
The JJH-2 Electronic Polarization probe measures 16” & 64”Normal Resistivity,Spontaneous Potential (SP),16” & 64”Polarization. A high chargeability response is an indication of the presence of metallic sulphides and oxides or cation-rich clays. Users can log resistivity profiles with different depths of investigation and gain information about permeability, porosity, water quality and geological formation properties.
Operating Conditions:Uncased；Borehole Fluid:Water or Mud
Features & Benefits
1. Measuring electrode is the non-magnetic alloy, electrostatic shielding technology, special ways of excitation.
2. Integration design, no moving parts, chemical resistance, wear resistance.
Applications
1. Detection of disseminated pyrite in sedimentary rocks.
2. In uranium roll-front deposits, which sometimes show higher concentrations of pyrite.
3. In coal seams to detect pyrite or other ferrous material.
4. Detection of sulfides in igneous and metamorphic rocks.
5. Identify montmorillonite clay in sedimentary depositional systems.
Parameter
1. Electrode Array: AM 16”;AM 64”
2. A,B supply current:500mA
3. Measuring Range:
4. Measurement Accuracy:2%(10～4000Ωm)or ±1Ωm
5. Environmental: Temperature≦80℃；Pressure≤20MPa
6.Signal:Bipolar codes
