PT100 Bipolar Codes Temperature And Fluid Conductivity Probe

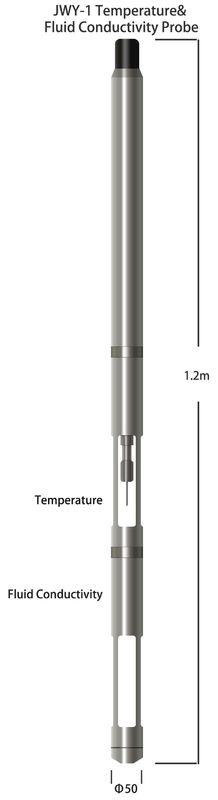

0℃～100℃ / 0～200Ωm pt100 bipolar codes JWY-1 Temperature and Fluid Conductivity Probe

Description

The Fluid Conductivity and Temperature probe provides borehole temperature and fluid conductivity measurements. The borehole temperature measurement is helpful to detect anomalies caused by events such as fluid flow into the borehole.

The borehole fluid conductivity is directly proportional to the concentration of dissolved minerals. It is generally used in hydrogeology to determine the concentration of dissolved ions in the aquifers and to locate the fluid flows occurring in the borehole.

Operating Conditions:Uncased；Borehole Fluid:Water or Mud

Features & Benefits

1. The sensor adopts pt100 platinum resistance of a small time constant and can quickly identify temperature changes in the stratum.

2. Strong resistance to jamming.

Applications

Fluid conductivity – salinity；Salt-water intrusion studies

Identification of fluid flow in open/cased hole

Localization of the water table；Water-well monitoring

Localization of water intervals of different quality

Geothermal gradient logging

Often used in the implementation of temperature compensation equations for other logs

Parameter
