Hi-Cloud, a leader of 3D laser scanning technology.
 |
| Place of Origin: | China |
| Brand Name: | Hi-Cloud |
| Certification: | ISO，others upon the requests |
| Model Number: | HD TLS360 Portable 3D Laser Scanner |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Transport Case 590*420*290mm |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets/month |
| Max. Measurement Range: | 150m | Min. Measurement Range: | 0.2m |
|---|---|---|---|
| Range Accuracy: | 3cm/100m | Scan Speed: | 4°/S～9°/S |
| Dimension: | 364mm×139.5mm×122mm | Weight: | Ca. 4kg |
| Highlight: | 150m 3D Laser Scanners,Lightweight 3D Laser Scanners,150m Portable 3D Laser Scanner |
||

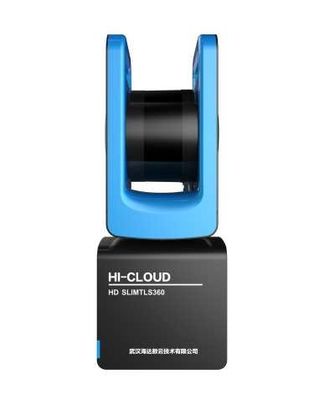

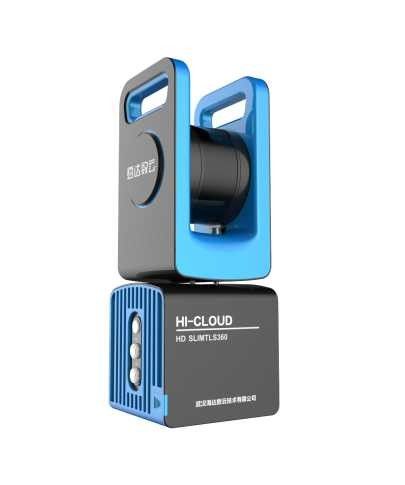

4kg lightweight 0.2 to 150m range HD TLS360 Portable 3D Laser Scanner with 4°/S～9°/S scan speed
Terrestrial 3D Laser Scanner with Robosence:The HD TLS360 Portable 3D Laser Scanner is a brand-new laser scanner developed by Wuhan Hi-Cloud Technology Co.,Ltd.. It is a small size, portable, easy to carry, fast scanning and cost-effective equipment. Taking lightweight and humanization as the design conception, it integrates laser scanning, image acquisition and other technologies, the equipment has the characteristics of easy to carry, target free and one-key operation. It can complete 3D data scanning and acquisition easily and efficiently. It is especially suitable for 3D laser application scenarios that require high precision, high efficiency and low cost.
Hence, HD TLS360 Portable 3D Laser Scanner can be used in such application fields like: Building facade measurement, Accident scene investigation, Pile volume calculation, Indoor measurements, Decorations, Plane and vertical section drawing, Digital parks, University teaching and others.
Specification of HD TLS360 Portable 3D Laser Scanner
| Items | Parameters |
| Max. Measurement Range | 150m |
| Min. Measurement Range | 0.2m |
| Range Accuracy | 3cm@100m |
| Scan Point Rate | 300,000pts/s |
| FoV(vertical) | 280° |
| FoV(horizontal) | 360° |
| Scan Speed | 4°/S～9°/S |
| Panoramic Resolution | 18M Pixels(External camera) |
| Duo Axis Compensation | ±5° |
| Data Storage | 256G(MSATA)+128G(TF) |
| Date Transmission | GigE/TF Card |
| Control Mode | Mobile terminal remote control |
| Battery Life | ＞4h |
| Dimension | 364mm×139.5mm×122mm |
| Weight | Ca. 4kg |
Advantages of HD TLS360 Portable 3D Laser Scanner
1. Easy to carry: only 4kg, easily operated by one person
2. Scanning when it’s stationed: ±5° tilt compensation , without accurate leveling
3. Fast scanning: 90s for one station, high efficiency
4. Powerful expansion: external panoramic camera
5. One key operation: mobile phone Apps for wireless control
6. Various scenarios: multiple mode for various application scenarios
Key Application Scenarios of HD TLS360 Portable 3D Laser Scanner
Building Facade, Accident Scene Investigation, Pile Volume Calculation, Interior Decoration, Plane/Elevation Section Drawing, Digital Park, University Teaching, etc.

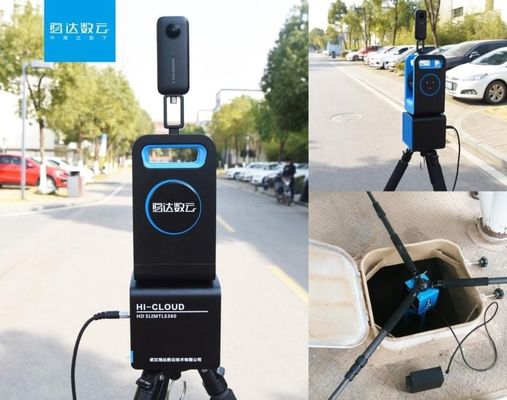

Application of Outdoor Measurement
Application of Indoor Measurement
Application of Volume Calculation
Application of Accident Scene Inspection
