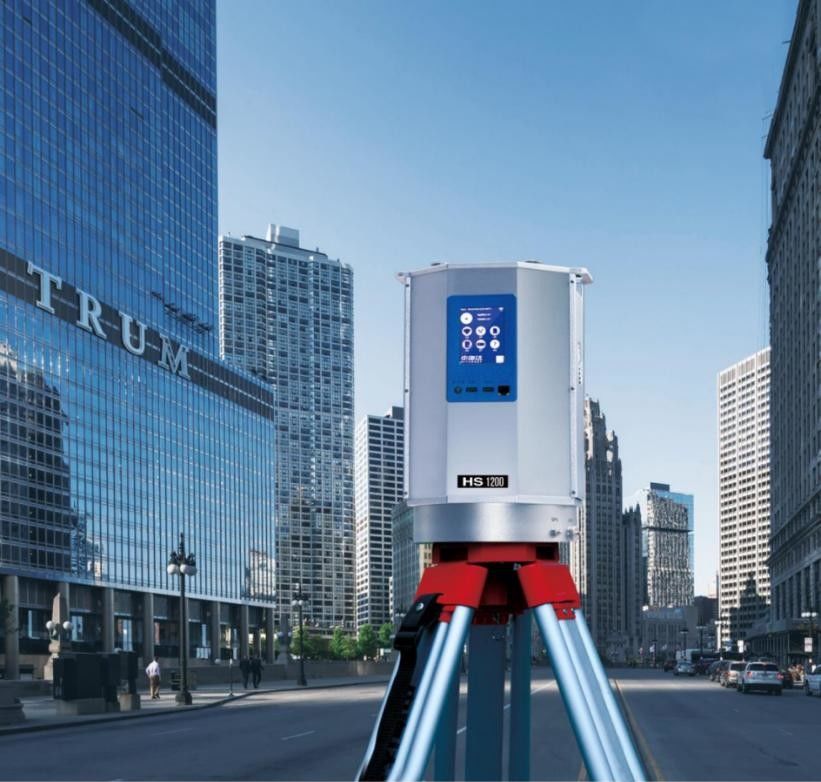

1.2km HS1200 High Precision 3D Terrestrial Laser Scanners 500kHz PRR

1.2km HS1200 High Precision 3D Terrestrial Laser Scanners 500kHz PRR

  • 1.2km HS1200 High Precision 3D Terrestrial Laser Scanners 500kHz PRR
1.2km HS1200 High Precision 3D Terrestrial Laser Scanners 500kHz PRR
Product Details:
Place of Origin: China
Brand Name: Hi-Cloud
Certification: ISO, others upon the requests
Model Number: HS1200 High Precision 3D Laser Scanner
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transport Case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Laser Class: Class 1 (eye Safe) Min.Range: 2.5m
Max. Range: 1200m Scan FoV Vertical: 100°(-40°~+60°)
Scan FoV Horizontal: 360° Angular Measurement Resolution: 0.001°
High Light:

1.2km Terrestrial Laser Scanners

,

500kHz Terrestrial Laser Scanners

,

1.2km high precision 3d scanner

1.2km range HS1200 High Precision 5mm@100m 3D Laser Scanner with 500kHz PRR and Scan Fov 100°*360°



HS1200 high precision 3D laser scanner is a pulse based, high-precision and high frequency 3D laser scanner. It is independently developed by  Wuhan Hi-Cloud Technology Co.,Ltd. It is equipped with the full business process 3D laser point cloud processing software which is also independently developed by Hi-Cloud.





It is designed to be widely used in digital cultural heritage, digital city, topographic mapping, deformation monitoring, digital factory, tunnel engineering, construction BIM and other fields with high measurement accuracy, high point cloud processing efficiency and diversified application results.





Specification

HS1200 High Precision 3D Laser Scanner

Items Parameters
Ranging Mode Pulse
Laser Class Class 1 (eye safe)
Laser Beam Divergence ≤0.35mrad
Echo Mode Full waveform, multi-echo technology
Max. Range 1200m
Min.Range 2.5m
Accuracy 5mm@100m
Panorama Camera Resolution >70M pixels(external camera)
Laser Pulse Repetition Rate PRR Up to 500kHz
Scan FoV vertical 100°(-40°+60°)
horizontal 360°
Angular Measurement Resolution vertical 0.001°
horizontal 0.001°
Scan Speed vertical 3-150scans/s
horizontal max. 36°/s
Dual-axis tilt sensor Range ±5°
Resolution 0.001°
Data Storage 240GB(SSD)
Data Transmission GigE/USB2.0
Control Panel Full-color touch panel
Communicate Interface GigE/USB2.0/WLAN/Camera Trigger/GPS Synchronization,etc.
Battery Life >4H
Temperature Range -20℃+65℃(operation)
-40℃+85℃(storage)
Humidity non condensing
Light Condition can be operated in strong sunlight or darkness
Protection Class IP64
Main Dimensions Φ188mm×318mm
Weight ca.11Kg
①1200m@90%; 980m@60%; 800m@40%; 450m@20%
②295m 500kHz; 495m 300kHz; 1200m 100kHz



Product Features

  • High accuracy: 5mm@100m
  • High frequency: Max. Scanning frequency: 1,000,000 points/s
  • Fully independent: Fully independent intellectual property rights and guaranteed upgrade
  • Easy to expend: external GPS and camera
  • Whole process: supporting a series of self-developed software



Application of Topographic Survey

1.2km HS1200 High Precision 3D Terrestrial Laser Scanners 500kHz PRR 0





Application of Ancient Building Measurement

1.2km HS1200 High Precision 3D Terrestrial Laser Scanners 500kHz PRR 1



Application of Power Line Survey

1.2km HS1200 High Precision 3D Terrestrial Laser Scanners 500kHz PRR 2



Application of Irregular Structure Survey

1.2km HS1200 High Precision 3D Terrestrial Laser Scanners 500kHz PRR 3
