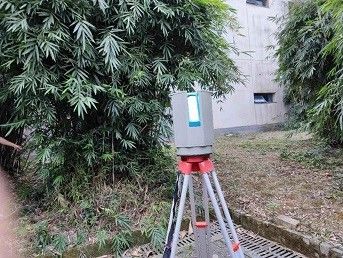

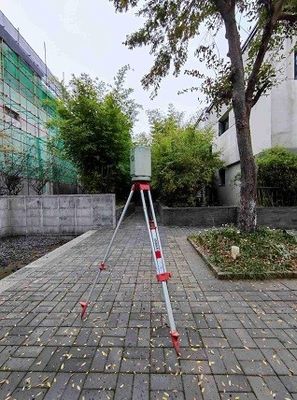

650m 500kHz PRR HS650i Terrestrial Laser Scanners For Building Restoration Reconstruction

650m 500kHz PRR HS650i Terrestrial Laser Scanners For Building Restoration Reconstruction

  • 650m 500kHz PRR HS650i Terrestrial Laser Scanners For Building Restoration Reconstruction
  • 650m 500kHz PRR HS650i Terrestrial Laser Scanners For Building Restoration Reconstruction
650m 500kHz PRR HS650i Terrestrial Laser Scanners For Building Restoration Reconstruction
Product Details:
Place of Origin: China
Brand Name: Hi-Cloud
Certification: ISO, others upon the requests
Model Number: HS650i terrestrial laser scanner
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transport Case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 50 sets/month
Contact Now
Detailed Product Description
Application: Restoration And Reconstruction Of Ancient Building Min. Range: 1.5m
Max. Range: 650m Accuracy: 5mm@40m
PRR: 500kHz Laser Class: Class 1 (eye Safe)
High Light:

650m Terrestrial Laser Scanners

,

Building Restoration Terrestrial Laser Scanners

,

500kHz construction laser scanner

650m 500kHz PRR 5mm@40m accuracy HS650i terrestrial laser scanner for restoration and reconstruction of ancient building



According to the needs of national development, as the treasure of Chinese culture and art, the archiving of ancient buildings has received more and more attention from the society and the government. With the rapid development of digitalization and informatization in all fields of society, digital protection of ancient buildings has gradually entered the public's vision, and the technology used in the protection and repair of ancient buildings has also been constantly updated. Surveying and mapping, as a basic work in the protection of ancient architectural heritage, is of greater significance.



Compared with the traditional surveying and mapping of ancient buildings, 3D laser scanning technology has many advantages, such as non-contact, high speed, high precision, complete information collection and so on. 3D laser scanning technology can provide real, accurate and comprehensive data information for the protection and repair of ancient buildings, and has the unique advantage of non-contact. It just meets the measurement needs of information acquisition and preservation of ancient buildings in China, and meets the needs of digital protection of ancient buildings. At present, Hi-Cloud HS650i 3D laser scanner can provide high-precision 3D scanning technology, which is a new way to collect ancient architecture data. It can quickly obtain the information of the real shape and characteristics of ancient buildings, quickly convert the physical information into electronic information, and bring convenience and innovation to the field of ancient building protection and repair.



Features:



1. Measurement range from 1.5m to 650m

2. High precision 3D laser scanner: 5mm@40m

3. Data Storage 240GB(SSD) and Data Transmission GigE/USB2.0

4. High protection level IP64

5. Full waveform, multi-echo technology



Specifications:



Type

HS650i
Ranging Mode Pulse
Laser Class Class 1 (eye safe)
Laser Beam Divergence 0.35mrad
Max. Range 650m@90%,100kHz
Min.Range 1.5m
Range Accuracy 5mm@40m
Laser Pulse Repetition Rate PRR

Max. 500kHz

Scan FoV vertical 100°(-40°~+60°)
horizontal 360°
Angular Measurement Resolution vertical 0.001°
horizontal 0.001°
Scan Speed vertical 3-150scans/s
horizontal max.36°/s
Dual-axis tilt sensor Range ±5°
Resolution 0.001°
Control Mode Support mobile terminal APP and remote control
Communicate Interface GigE/USB2.0/WLAN/Camera Trigger/GPS Synchronization,etc.
Operation Temperature -20℃~+60℃
Storage Temperature -40℃~+85℃
Humidity non condensing
Protection Class IP64
Main Dimensions

φ188mm×318mm

Weight ca.10.5Kg
