Hi-Cloud, a leader of 3D laser scanning technology.
 |
| Place of Origin: | China |
| Brand Name: | Hi-Cloud |
| Certification: | ISO, others upon the requests |
| Model Number: | HS300X Terrestrial Laser Scanner |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Transport Case |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 sets/month |
| Range: | 1.5m To 300m | Range Accuracy: | 5mm@40m |
|---|---|---|---|
| Laser Class: | Class I | PRR: | 500kHz |
| Angular Resolution: | 0.002° | Operation Temperature: | -10℃～65℃ |
| High Light: | 1.5m Terrestrial Laser Scanners,IP65 Terrestrial Laser Scanners,300m Terrestrial Laser Scanning Equipment |
||

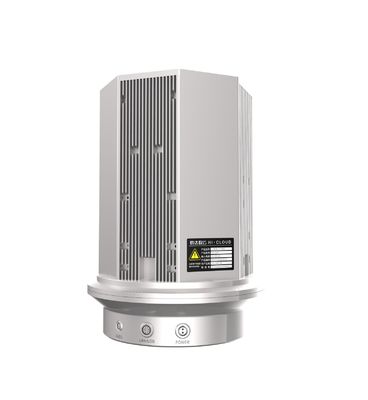

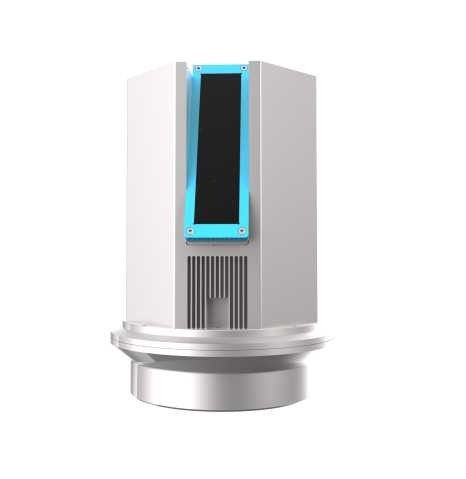

1.5m to 300m range 5mm@40m high accuracy Terrestrial Laser Scanner HS300X for industrial application with IP65
3D laser scanning technology, also known as the real scene replication technology, is a technical revolution in the field of surveying and mapping after GPS technology. It breaks through the traditional single point measurement method and has the unique advantages of high efficiency and high precision. 3D laser scanning technology can provide 3D point cloud data of scanned object surface, so it can be used to obtain high precision and high resolution digital terrain model. By means of high-speed laser scanning measurement, it can quickly obtain the 3D coordinate data of the measured object surface with large area and high resolution. It can quickly collect a large number of spatial point information, which provides a new technical means for the rapid establishment of 3D image model of objects.
HS300X industrial high-precision 3D terrestrial laser scanner is dustproof, waterproof and shockproof. It is equipped with industrial integrated secondary development package (equipment control SDK, point cloud processing SDK) and laser measurement algorithm package, which can realize remote automatic control, meet the needs of basic registration, coordinate conversion, volume calculation, etc. The scanner can also be customized according to the actual situation of the project, provides the industrial control whole process solution of laser measurement hardware and software + PLC, and provides regular calibration and other after-sales services.
HS300X industrial high-precision 3D terrestrial laser scanner is widely used in steel factory, metallurgy, port, wharf, mine, tunnel, electric power and other industries.
Parameters of HS300X
| Ranging Mode | Pulse, Laser Wavelength: 1545nm | |
| Laser Class | Ⅰ | |
| Measurement Range | 1.5m ~ 300m | |
| Range Accuracy | 5mm@40m | |
| PRR | 500kHz | |
| FoV | vertical | 100°(-40°～+60°) |
| horizontal | 360° | |
| Angular Resolution | vertical | 0.002° |
| horizontal | 0.002° | |
| Scan Speed | horizontal | Max. 30r/s |
| vertical | Max. 150lines/s | |
| Duo Axis Compensation | Range | +/- 5° |
| Resolution | 0.001° | |
| Data Transmission | Ethernet | |
| Communication Interface | Ethernet/1 x USB/GNSS, connecting external cameras and other sensors, such as GPS, odometer, etc | |
| Operation Temperature | -10℃～65℃ | |
| Storage Temperature | -20℃～65℃ | |
| Illumination Condition | Can be operated in strong sunlight or darkness | |
| Humidity | Non condensing | |
| Product | Waterproof and dustproof | |
Advantages of HS300X
1. High accuracy: up to 5mm@40m
2. High protection class: IP65
3. Remote control
4. Strong stability
5. Strong expansibility
Application fields of HS300X
Application of Thickness Measurement of Converter Brasque
Application of Gravel and Coal Supervision System
Application of the Measurement of the Converter Target Balls
