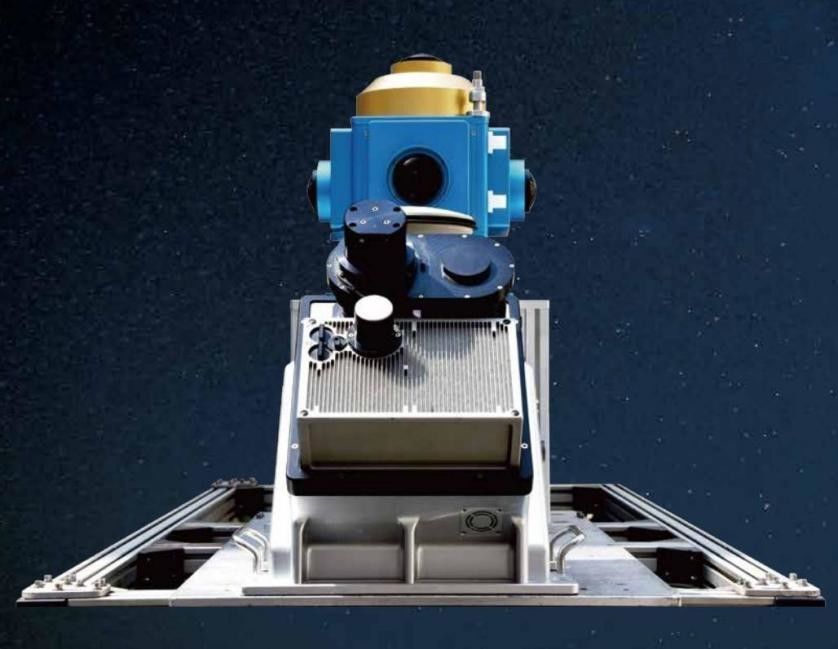

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z

  • 119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z
119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z
Product Details:
Place of Origin: China
Brand Name: Hi-Cloud
Certification: ISO, others upon the requests
Model Number: HiScan-Z LiDAR Mobile Mapping System
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Transport Case
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 5 sets/month
Contact Now
Detailed Product Description
Number Of Scanners: 1 Range: 119m
Range Accuracy: 1mm@50m Frequency: 1,010,000 Points/s
Scan FoV: 360 ° Angular Resolution: 0.0088 °
Panoramic Camera Resolution: 30M Pixels Scan Speed: Max.200 Scans/s
High Light:

119m LiDAR Mobile Mapping System

,

30M pixels LiDAR Mobile Mapping System

,

119m mobile lidar system

119m range high precision 1mm@50m and 200 scans/s speed LiDAR mobile mapping system HiScan-Z with 360 ° FoV



HiScan-Z LiDAR mobile mapping system is a high-precision 3D laser mobile measurement system, it is a Z+F LiDAR based surveying and mapping equipment which developed and launched by Wuhan Hi-Cloud Technology Co., Ltd.. The system highly integrates 2D laser scanning equipment, satellite positioning module, inertial navigation unit, odometer, 360° panoramic camera, assembly control module and high-performance computers in a rigid platform. The lighweight system can be easily installed on cars, ships or other mobile carriers. During the high-speed movement of the carrier, it can quickly obtain high-precision positioning and orientation data, high-density point clouds and high-definition continuous panoramic image data.



Application fields of HiScan-Z



The system can easily complete the production and processing of vector map data, street view data and geographic data, and is widely used in basic topographic surveying and mapping, urban municipal components/garden census, traffic survey and design, traffic information census, street view map service, digital 3D city and other fields.



Features of HiScan-Z



1. HiScan-Z high-precision 3D LiDAR mobile mapping system has a laser emission frequency of million level.  The system can be easily installed on cars, ships or other mobile carriers.



2. With the better than 5cm comprehensive accuracy of HiScan-Z high-precision 3D LiDAR mobile mapping system, and the 1mm@50m range accuracy, it has a ultra-high point cloud accuracy and more accurate point selection.



3. Through the strict industry standards and perfect technical supervision, HiScan-Z high-precision 3D LiDAR mobile mapping system has high degree of productization, stable and reliable system. Its data can be widely used in basic terrain surveying and mapping, urban special survey, traffic survey and design Internet street view map, 3D digital city and other fields.



4. Wuhan Hi-Cloud Technology Co.,Ltd. is a company engaged in the development, application service and industrialization of high-precision 3D laser measurement equipment. Hi-Cloud fully excavates the potential needs of customers in a series of processes from pre-sales to after-sales, and helps customers solve these problems timely and accurately.



Parameter specification of HiScan-Z



Items Parameters
Number of Scanners 1
Range 119m
Laser Frequency 1,010,000 points/ s
Range Accuracy 1mm@50m
Angle Resolution 0.0088 °
Scan FoV 360 °
Scan Speed Maximum 200 scans/s
Panoramic Camera Ladybug
Panoramic Camera Resolution 30M pixels
Accuracy 5cm@100m



Application projects of HiScan-Z



1. Internet street view map

HiScan-Z high-precision 3D LiDAR mobile mapping system can collect high-definition panoramic photos of the whole city and coordinate information of corresponding acquisition points, provide customers with overall urban 3D real scene data processing and display application scheme, build the 3D real scene of the whole city, and promote the intelligent development of the city.

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 0



2. Basic topographic mapping

HiScan-Z high-precision 3D LiDAR mobile mapping system can quickly collect all geographical elements of the specified area, and the obtained high-precision data can meet the accuracy requirements of 1:500 topographic map. It can quickly carry out mapping production through the office data processing software, and can be widely used in the application fields of large-scale basic topographic map survey, urban terrain repair survey and update, urban high-precision DEM update and so on.

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 1



3. Urban municipal component survey

According to the requirements for rapid acquisition and application of municipal components and other elements in urban management,HiScan-Z high-precision 3D LiDAR mobile mapping system can quickly collect the 3D coordinate information of target features on both sides of the road, accurately and quickly extract and collect urban municipal, urban management components, traffic signs, outdoor advertisements and other features, and publish and apply the extracted and collected results. It can be seamlessly connected with existing digital urban management systems and can be applied to urban management application fields such as digital urban management.

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 2



4. Urban landscaping survey

HiScan-Z high-precision 3D LiDAR mobile mapping system can quickly collect the 3D point cloud data of garden trees on both sides of the road. Through the garden survey software, the geometric information such as tree position, diameter, tree height and crown width can be extracted semi automatically. At the same time, combined with the panoramic image, the tree information can be extracted.

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 3

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 4

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 5

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 6



5. Highway survey and intelligent transportation

HiScan-Z high-precision 3D LiDAR mobile mapping system has natural advantages in the field of transportation. It collects 3D laser point clouds on the road and both sides in the process of rapid movement, and can quickly produce road vertical and horizontal sections, strip topographic maps and traffic thematic spatial geographic information data. It can be widely used in road reconstruction and expansion engineering survey, road large and medium-sized repair mapping, highway strip topographic map mapping, bridge and road As-built survey, road asset survey and database building, road 3D modeling and other application fields.

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 7

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 8

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 9



6. Digital 3D city

HiScan-Z high-precision 3D LiDAR mobile mapping system can quickly scan and obtain urban basic data, directly obtain 3D spatial point cloud data of the scene, corresponding high-definition texture image and panoramic image, and quickly obtain 3D data model through model data fusion technology, which can be widely used in urban geographic information sharing service, urban planning, building management, smart community, smart home and other fields.

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 10

119m Range 30M Pixels LiDAR Mobile Mapping System HiScan-Z 11
