Place of Origin: | China |
Brand Name: | Hi-Cloud |
Certification: | ISO, others upon the requests |
Model Number: | HiScan-C LiDAR Mobile Mapping System |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Transport Case |
Delivery Time: | 20 working days |
Payment Terms: | T/T |
Supply Ability: | 5 sets/month |
Range: | 150m/300/600m@90% | Range Accuracy: | 5mm@40m |
---|---|---|---|
Laser Frequency: | 500,000 / 1,000,000 Points/s | Angular Resolution: | 0.0088° |
Number Of Sacnners: | 1 Or 2 | Scan Speed: | 200scans/s |
High Light: | 30MP LiDAR Mobile Mapping System,150m LiDAR Mobile Mapping System,30MP mobile lidar system |

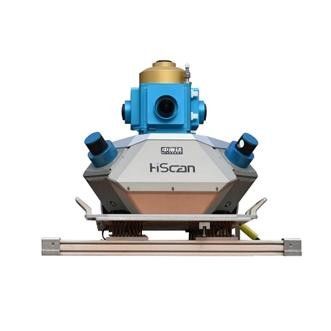

5mm@40m accuracy 150m/300/600m range 200scans/s scan speed HiScan-C LiDAR Mobile Mapping System with 30MP camera
HiScan-C LiDAR mobile mapping system integrates satellite positioning module (GNSS), inertial navigation unit (IMU), mileage encoder, 360° panoramic camera, assembly control module, and high-performance computers. The core component laser scanner is independently developed by Wuhan Hi-Cloud Technology Co., Ltd.
The HiScan-C system can be easily installed on different carriers such as cars, ships or other mobile carriers, and can quickly obtain high-density laser point clouds and high-definition panoramic images during the movement. It can easily complete the vector map database construction, geographic data production and street view data production.
It is widely used in different application fields such as 3D digital city, road design for reconstruction and expansion, street view map service, strip topographic mapping, urban municipal component survey, transportation infrastructure measurement, mine measurement, waterway and embankment measurement, island reef shoreline measurement and so on.
Main Advantages of HiScan-C
1. Integration solution
Adhering to the principle of not only selling the products themselves, but also providing integrated solutions different from others, Hi-Cloud fully excavates the potential needs of customers in a series of processes from pre-sales to after-sales, and helps customers solve these problems timely and accurately.
2. High precision
The range accuracy is 5mm@40m and the comprehensive accuracy of HiScan-C system is better than 5cm. The HiScan-C high-precision 3D laser LiDAR mobile mapping system can be widely used in high-precision application fields such as street view map, basic terrain mapping, urban municipal component survey, traffic survey informatization, urban landscaping survey, digital / intelligent 3D City, etc.
3. High frequency
The HiScan-C LiDAR mobile mapping system has a million level laser emission frequency. It can collect high-density point cloud data and feed back the real information of ground objects during the high-speed movement of the carrier.
4. High reliability
HiScan-C high-precision 3D LiDAR mobile mapping system has high degree of productization, stable and reliable system. The data obtained by HiCloud-C can be widely used in basic terrain surveying and mapping, urban special survey, traffic survey and design Internet street view map, 3D digital city and other fields.
Parameter specification of HiScan-C
Model |
HiScan-C SU1 |
HiScan-C SU2 |
Number of Sacnners |
1 |
2 |
Range |
150m/300/600m@90% reflectivity |
150m/300/600m@90% reflectivity |
Range Accuracy |
5mm@40m |
5mm@40m |
Laser Frequency | Max. 500,000 points/s | Max. 1,000,000 points/s |
Scan Speed | 200scans/s | 200scans/s |
Angular Resolution |
0.0088° |
0.0088° |
Panorama Camera |
Ladybug |
Ladybug |
Camera Resolution |
30MP |
30MP |
System Accuracy |
5cm@100m |
5cm@100m |
Weight |
13kg |
36kg |
Application of HiScan-C
1. Internet street view map
HiScan-C 3D LiDAR mobile mapping system can collect high-definition panoramic photos of the whole city and coordinate information of corresponding acquisition points, provide customers with overall urban 3D real scene data processing and display application scheme, build the 3D real scene of the whole city, and promote the intelligent development of the city.
2. Basic topographic survey
HiScan-C 3D LiDAR mobile mapping system can quickly collect all geographical elements of the specified area, and the obtained high-precision data can meet the accuracy requirements of 1:500 high-precision topographic map. Through the data processing software and the rapid mapping production, it can be widely used for large-scale basic topographic map survey, urban topographic repair survey and update, urban high-precision DEM updating and other application fields.
3. Urban municipal component survey
According to the requirements for rapid acquisition and application of municipal components and other elements in urban management,HiScan-C 3D LiDAR mobile mapping system can quickly collect the 3D coordinate information of target features on both sides of the road, accurately and quickly extract and collect urban municipal, urban management components, traffic signs, outdoor advertisements and other features, and publish and apply the extracted and collected results. It can be seamlessly connected with existing digital urban management systems and can be applied to urban management application fields such as digital urban management.
4. Urban landscaping survey
HiScan-C 3D LiDAR mobile mapping system can quickly collect the 3D point cloud data of garden trees on both sides of the road. Through the garden survey software, the geometric information such as tree position, diameter, tree height and crown width can be extracted semi automatically. At the same time, combined with the panoramic image, the tree information can be extracted.
5. Highway survey and intelligent transportation
HiScan-C 3D LiDAR mobile mapping system has natural advantages in the field of transportation. It collects 3D laser point clouds on the road and both sides in the process of rapid movement, and can quickly produce road vertical and horizontal sections, strip topographic maps and traffic thematic spatial geographic information data. It can be widely used in road reconstruction and expansion engineering survey, road large and medium-sized repair mapping, highway strip topographic map mapping, bridge and road As-built survey, road asset survey and database building, road 3D modeling and other application fields.
6. Digital 3D city
HiScan-C 3D LiDAR mobile mapping system can quickly scan and obtain urban basic data, directly obtain 3D spatial point cloud data of the scene, corresponding high-definition texture image and panoramic image, and quickly obtain 3D data model through model data fusion technology, which can be widely used in urban geographic information sharing service, urban planning, building management, smart community, smart home and other fields.
