Hi-Cloud, a leader of 3D laser scanning technology.
 |
| Place of Origin: | China |
| Brand Name: | Hi-Cloud |
| Certification: | ISO, others upon the requests |
| Model Number: | Lightweight TLS360 Terrestrial Laser Scanner |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Transport Case |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50 sets/month |
| Application: | Cultural Relics Protection | Battery Life: | ＞4h |
|---|---|---|---|
| Measurement Range: | 0.2m To 150m | Range Accuracy: | 3cm@100m |
| Scan Point Rate: | 300,000pts/s | FoV: | 280° Vertical * 360° Horizontal |
| Highlight: | TLS360 Laser Mapping Device,150m Laser Mapping Device,0.2m outdoor laser scanner |
||

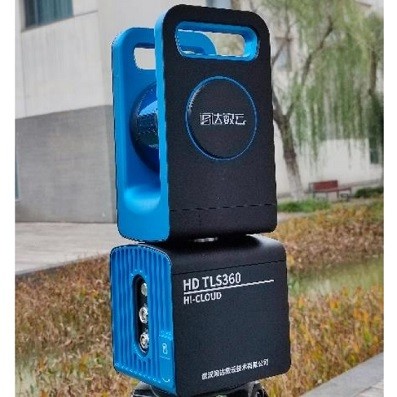

0.2m to 150m range 3cm@100m accuracy 280°*360° FoV 4kg TLS360 Terrestrial Laser Scanner for cultural relics protection
Ancient architectural relics and cultural relics are non renewable cultural resources. The establishment of digital cultural relics archives is of great significance to the protection of cultural relics. When retaining cultural relics, it is difficult to intuitively show the full picture of cultural relics by means of video, photos and hand drawing. TLS360 portable terrestrial laser scanner can solve this problem. 3D laser scanning technology is a non-contact measurement. The point cloud data obtained can be browsed and viewed in three dimensions, each detail of cultural relics can be obtained completely, and the surface and internal structure, materials, color, etc. of ancient buildings and cultural relics can be restored.
The 3D point cloud model can not only be used to save cultural relics information, but also establish a digital museum for virtual display, so that tourists can browse the full picture of cultural relics without going there in person.
Specification
| Items | Parameters |
| Max. Measurement Range | 150m |
| Min. Measurement Range | 0.2m |
| Range Accuracy | 3cm@100m |
| Scan Point Rate | 300,000pts/s |
| FoV | 280° vertical |
| 360° horizontal | |
| Scan Speed | 4°/S～9°/S |
| Panoramic Resolution | 18M Pixels(External camera) |
| Duo Axis Compensation | ±5° |
| Data Storage | 256G(MSATA)+128G(TF) |
| Date Transmission | GigE/TF Card |
| Control Mode | Mobile terminal remote control |
| Battery Life | ＞4h |
| Dimension | 364mm×139.5mm×122mm |
| Weight | Ca. 4kg |
Features
1. Fashion appearance:streamlined aluminum alloy shell, equipped with carbon fiber tripod
2. Easy to carry: only 4kg, easily operated by one person
3. Scanning when it’s stationed: ±5° tilt compensation , without accurate leveling
4. Fast scanning: 90s for one station, high efficiency
5. One key operation: mobile phone Apps for wireless control
6. Various scenarios: multiple mode for various application scenarios
